Hello.
I’d like to make it possible to see the visual of the selected preset.
I have two banks to offer you.
Two possible variations, almost identical. Depending on the difficulty, there may be an advantage to proceeding one way rather than another…
First bank:

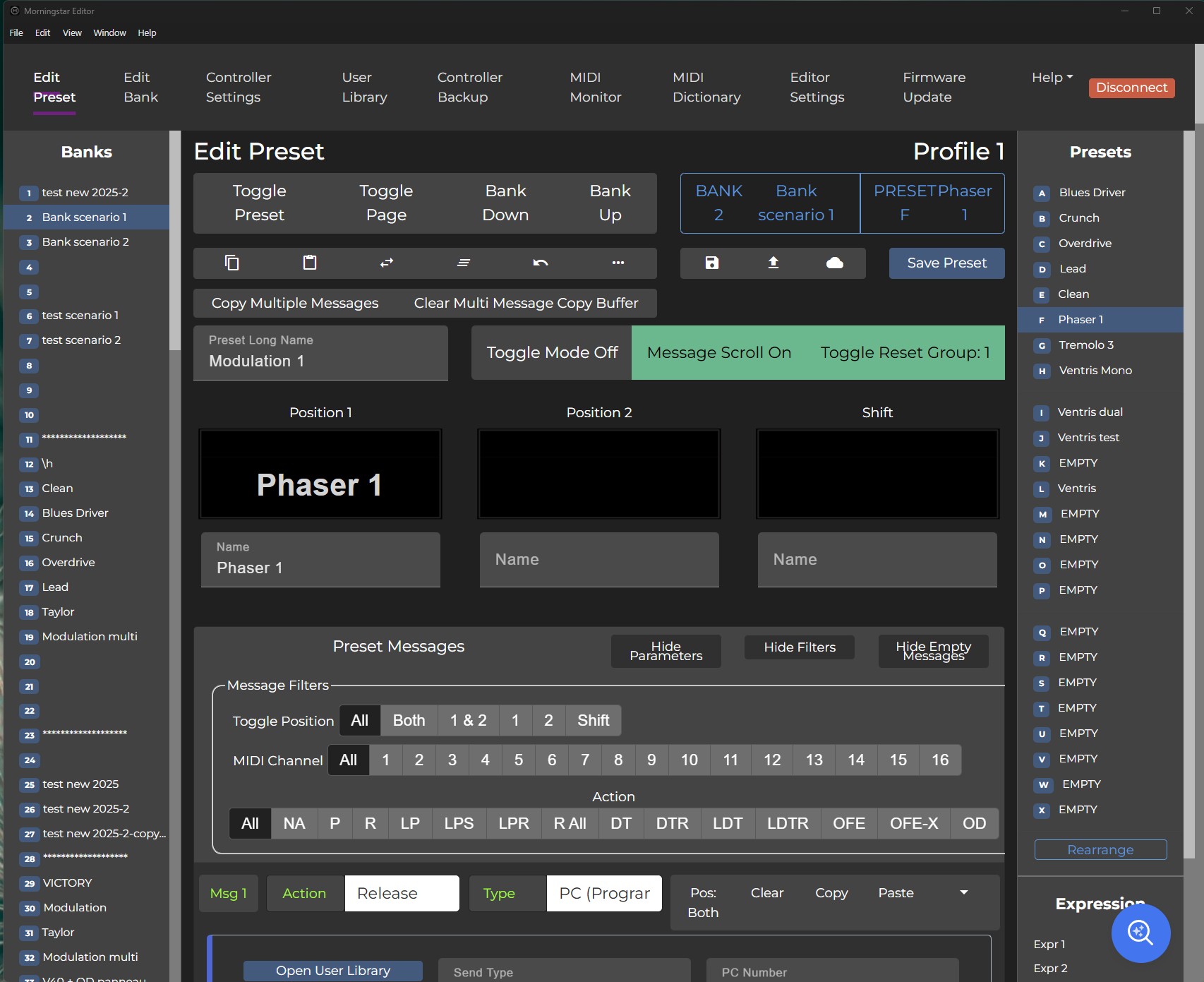

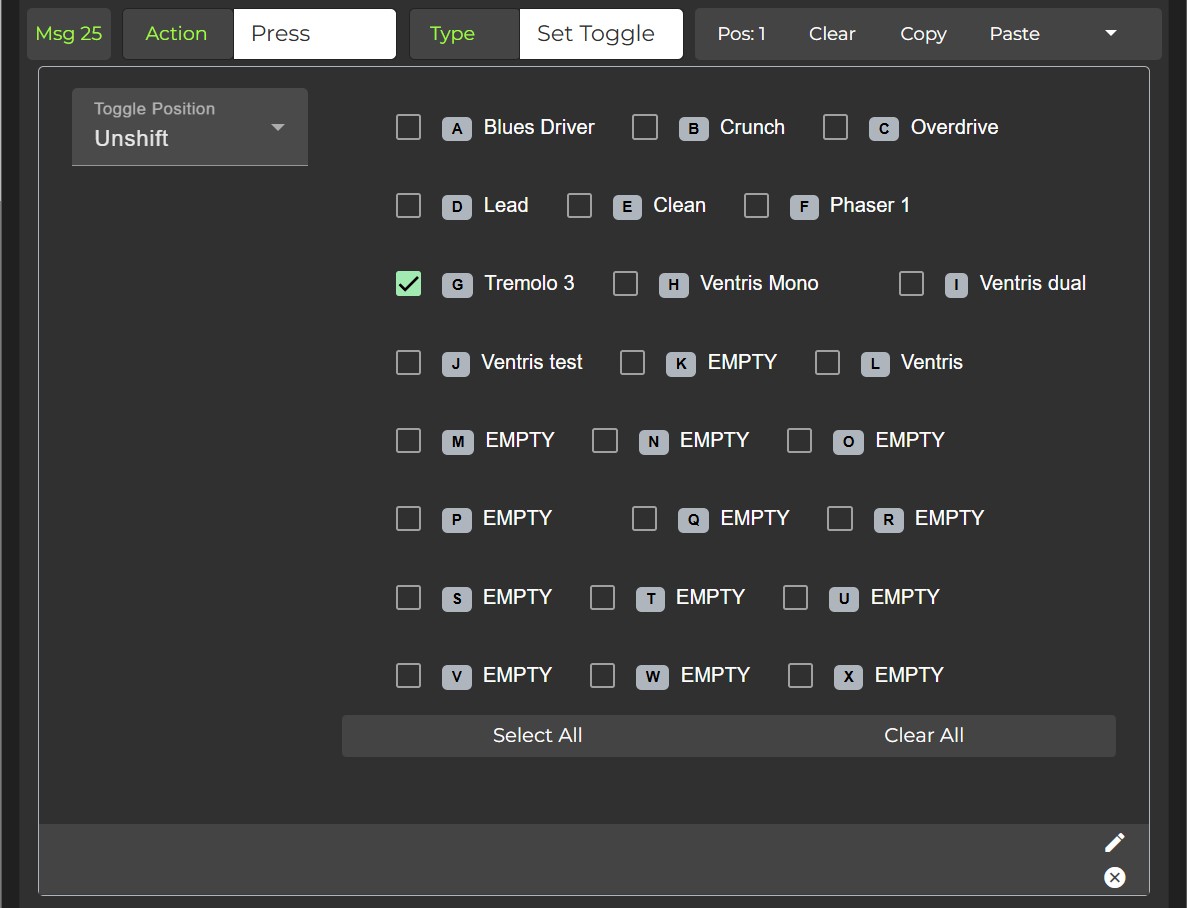

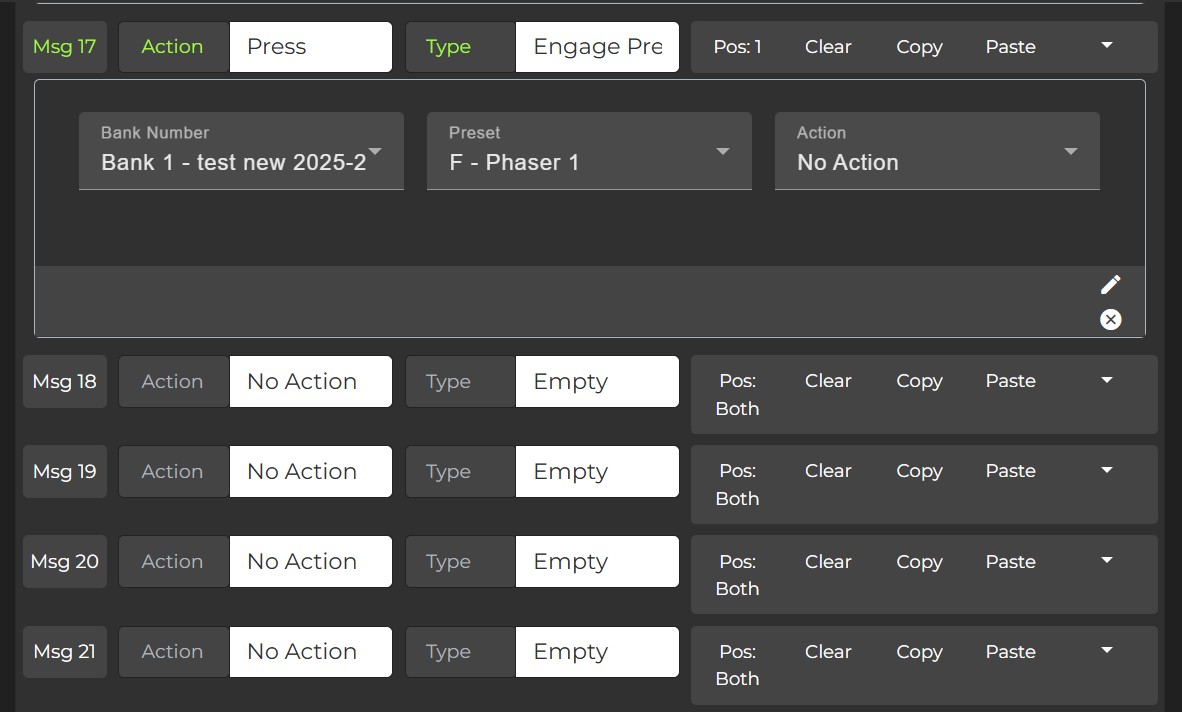

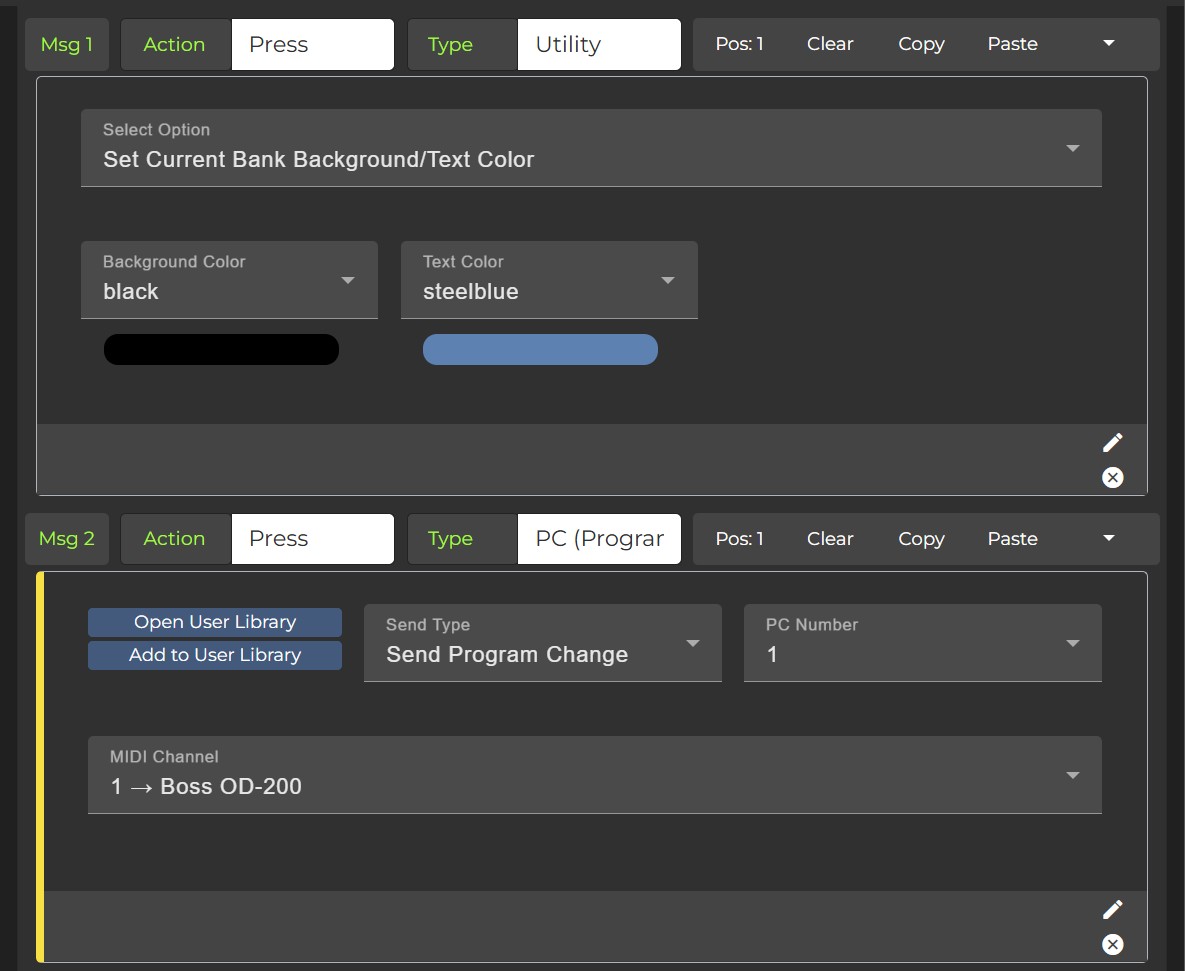

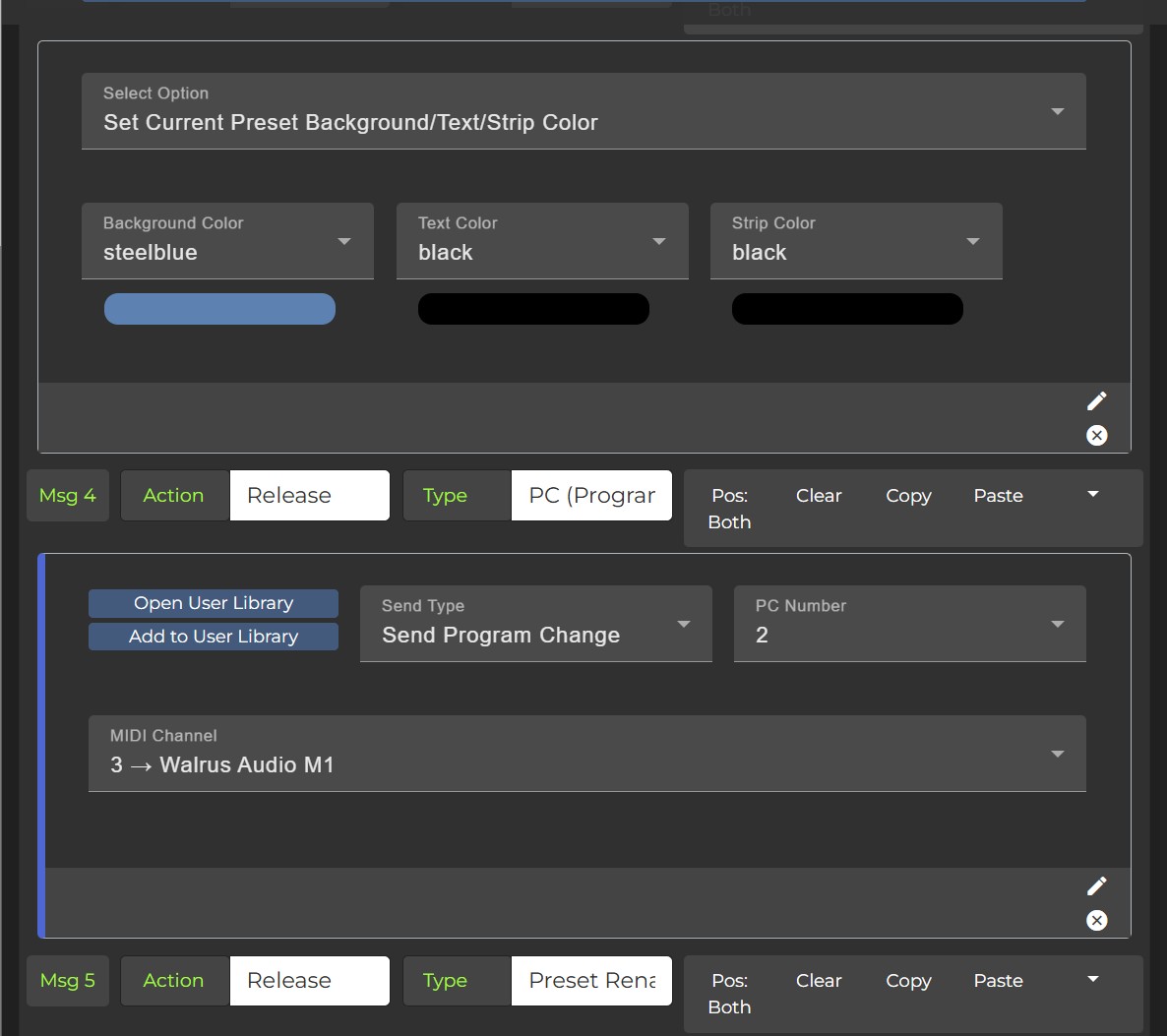

Here I select the bank, for example, preset A (drive). I then activate preset F (chorus or phaser) or G (tremolo or Leslie). You can see that the selected preset lights up. This is what I want.

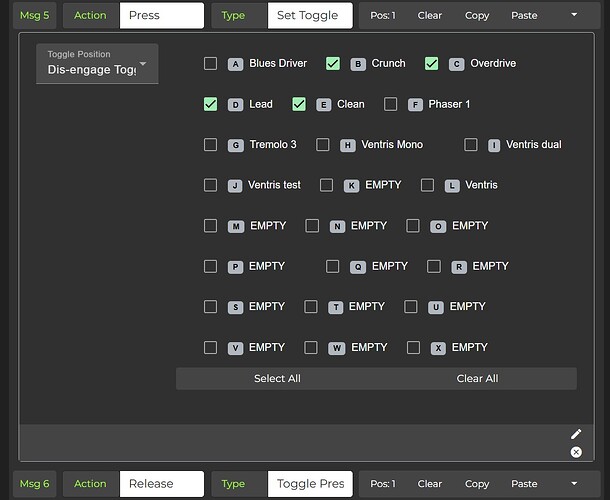

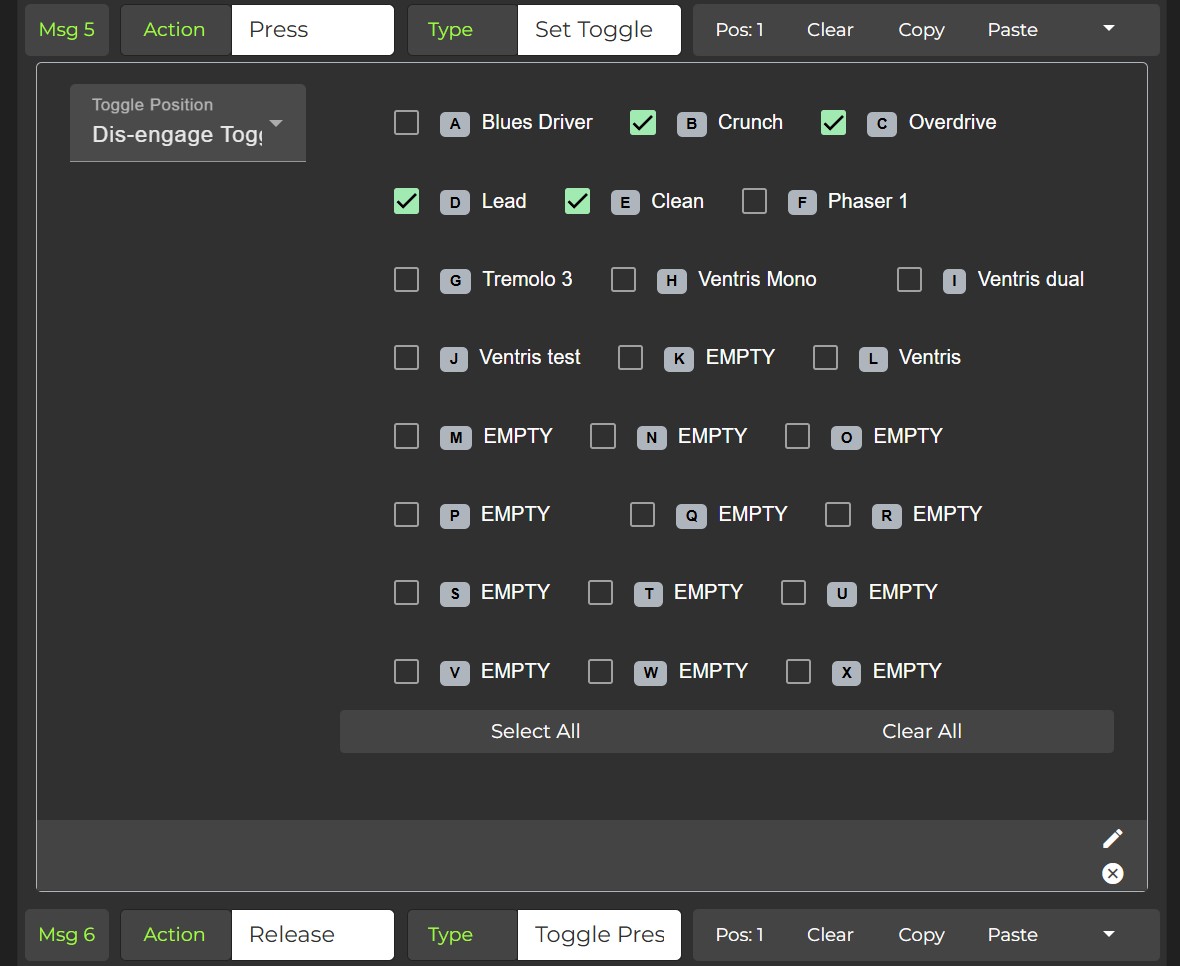

The problem here is that if I select preset B, for example (another drive), the selected F or G effect turns off, and I no longer know which one was selected. I’d like to find a solution so that the previously selected effect always remains lit (background color).

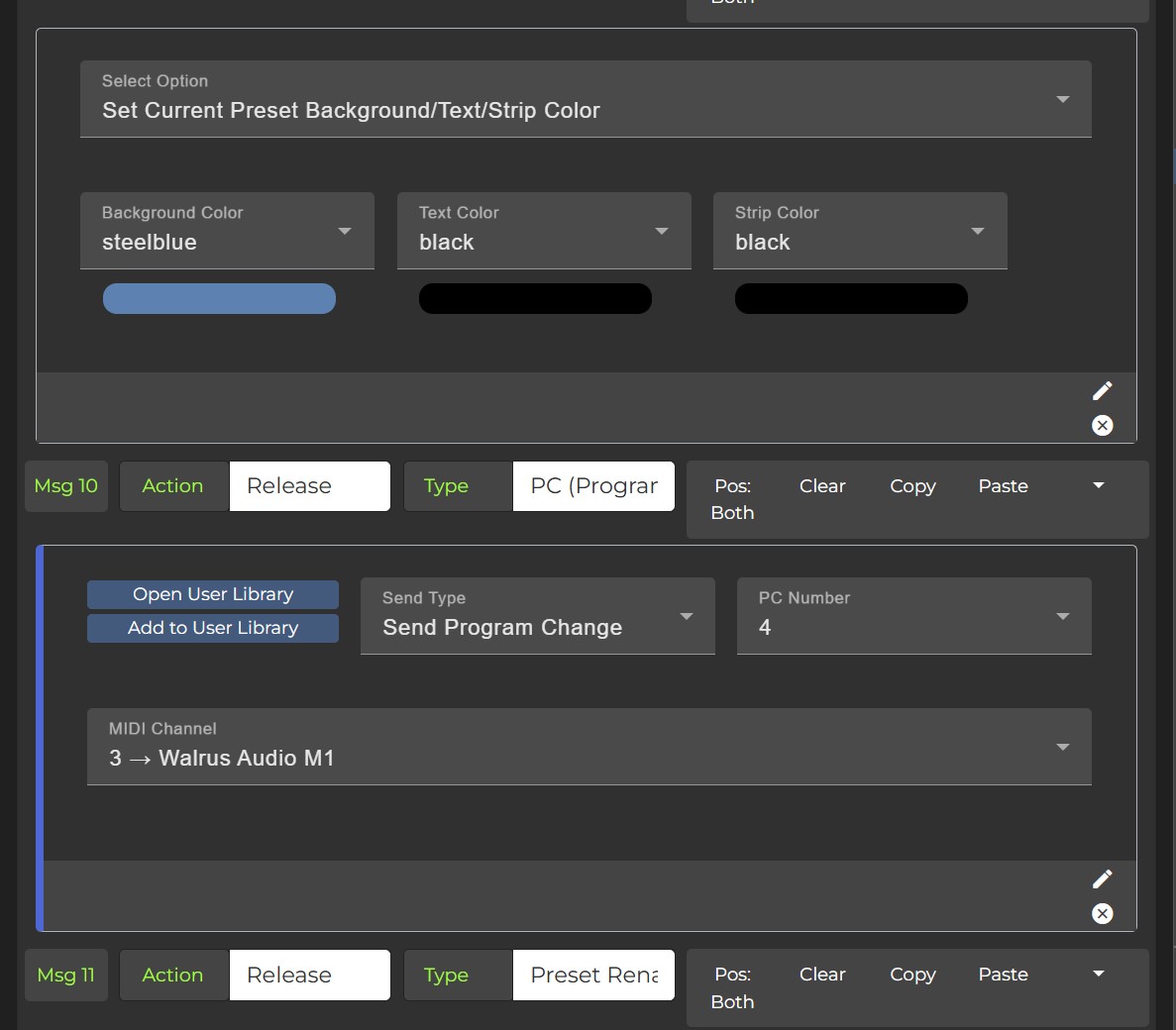

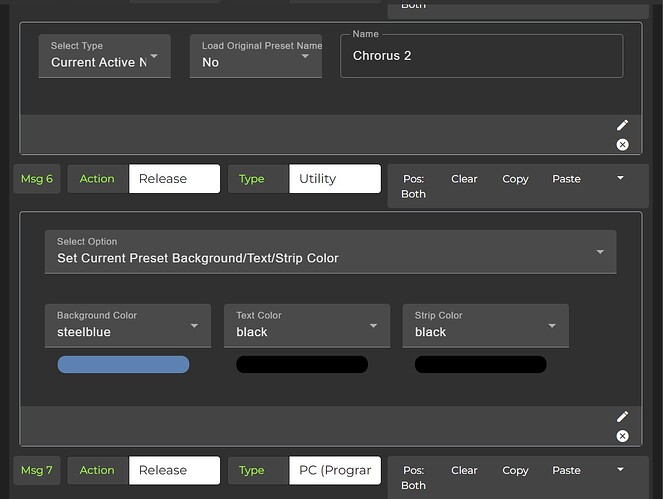

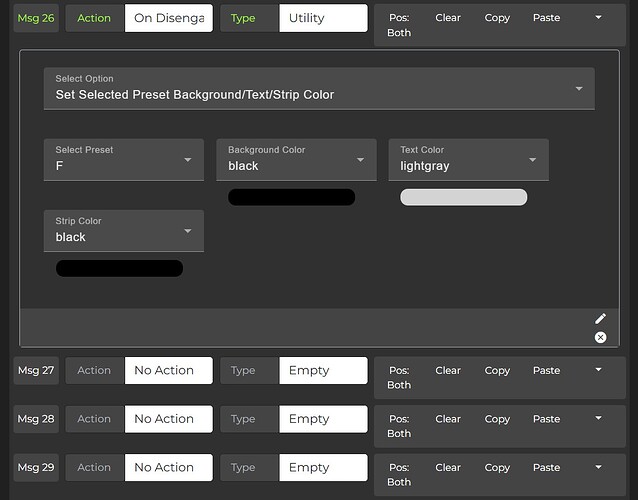

- bonus question: I turn off and on the F or G preset via a “long press” action on the F or G button. I would also like to turn on the strip when the effect is on if possible. Not mandatory. It’s an option.
Second bank:

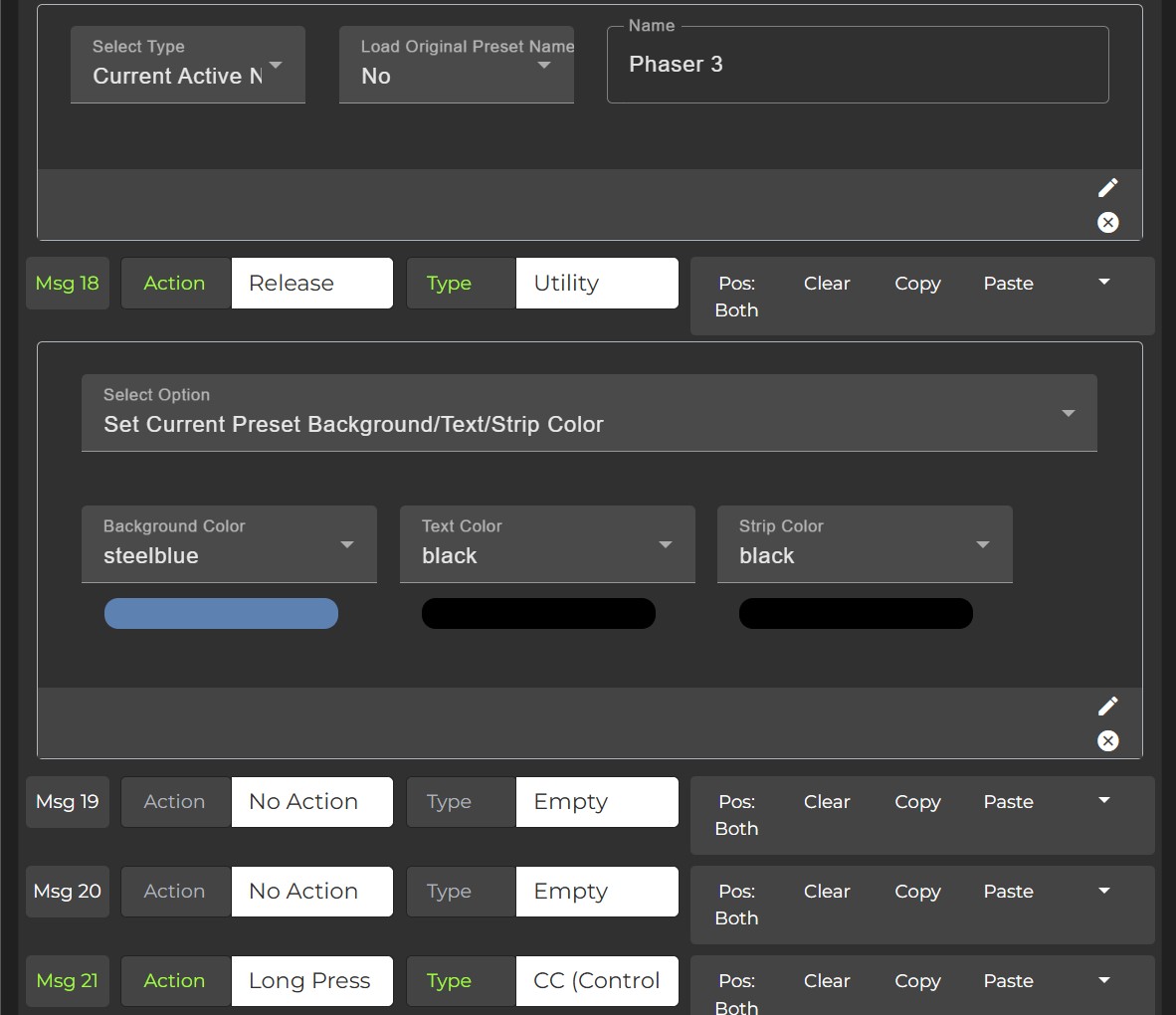

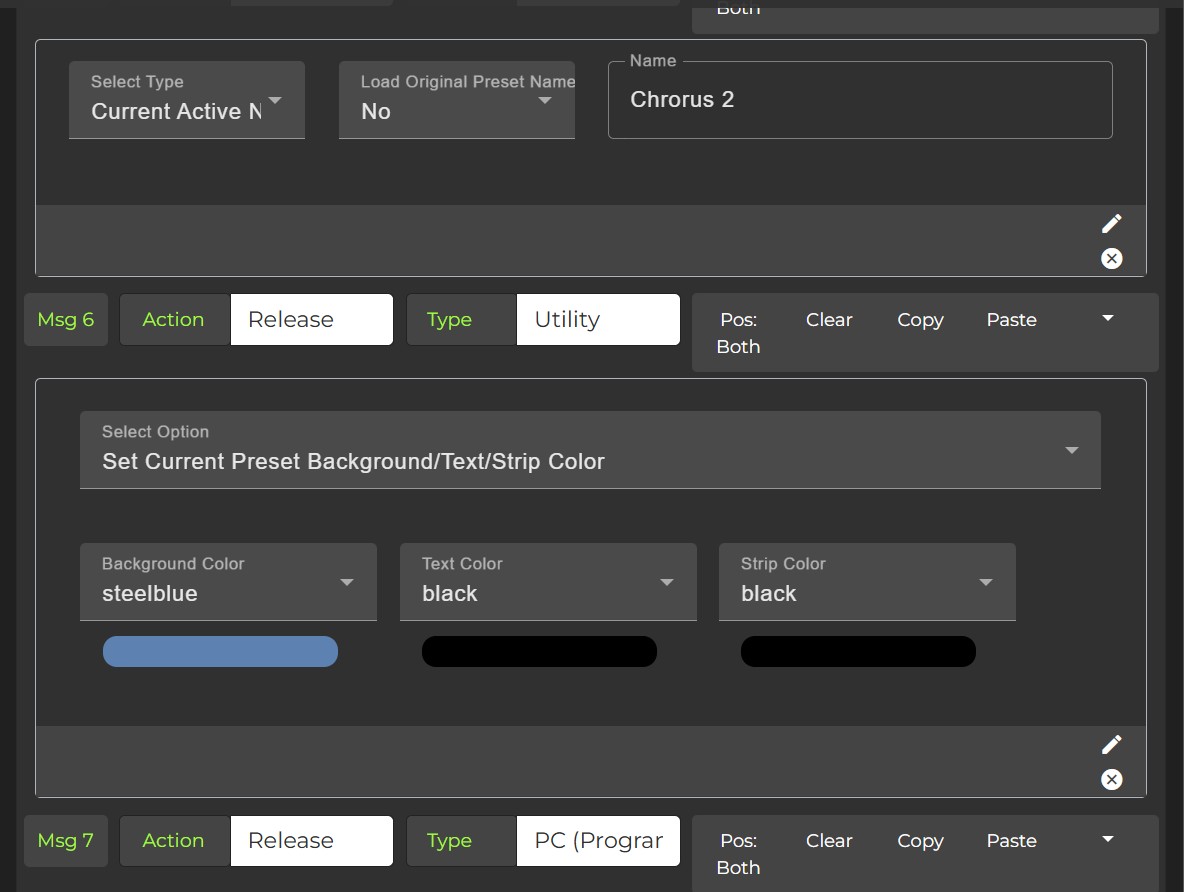

Here it’s the same as the previous bank, except that when you alternate between the F and G buttons, the effect’s background remains lit. So it’s impossible to tell which one is selected (thankfully, we have good ears ^^).

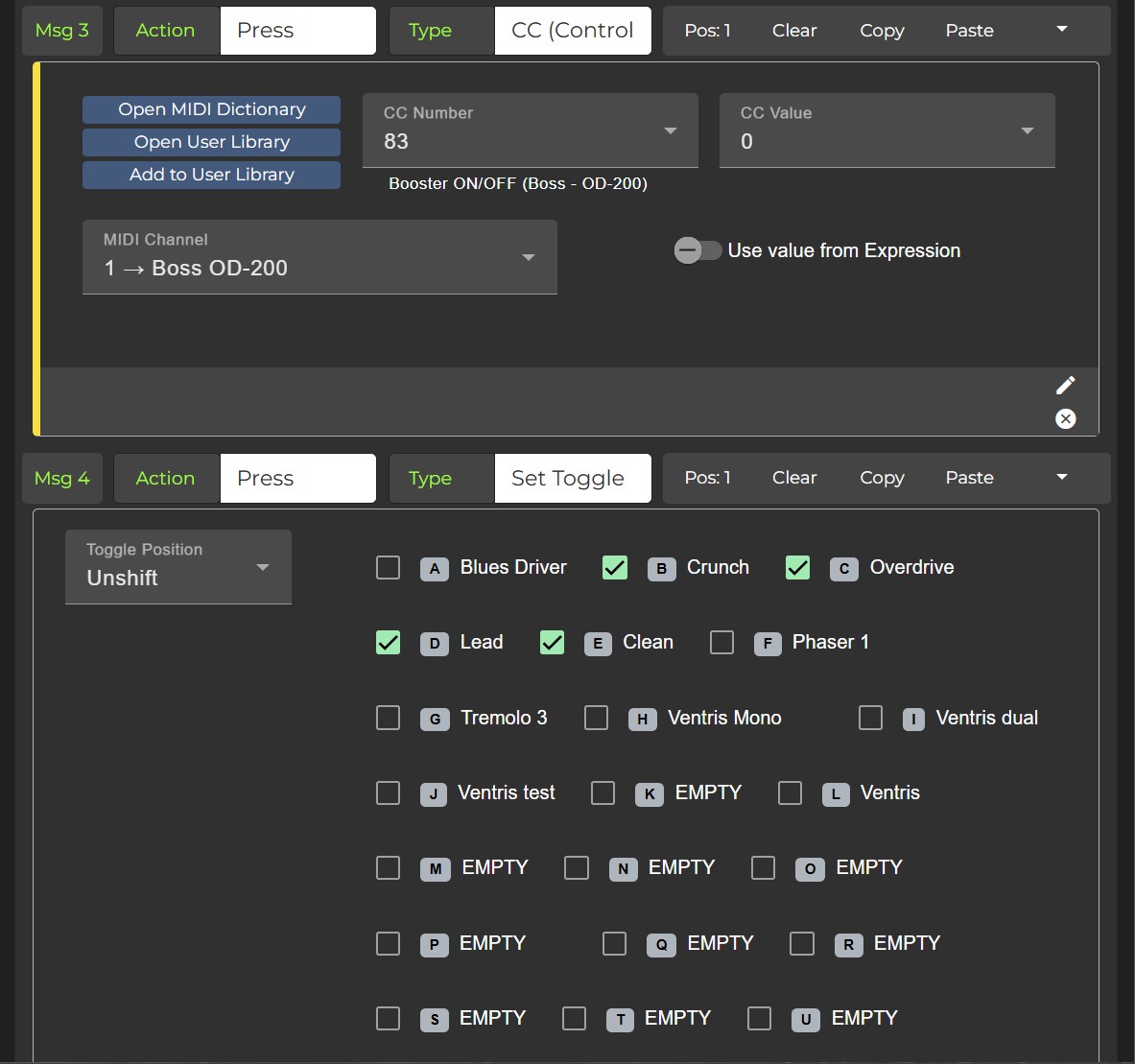

On the other hand, when you select several different drives (keys A to E), the background doesn’t turn off. It’s not perfect, but it’s a step in the right direction.
In this scenario, it would be enough to make the strip light up when you long-press it.
But be careful… What I didn’t specify for either scenario 1 or 2…

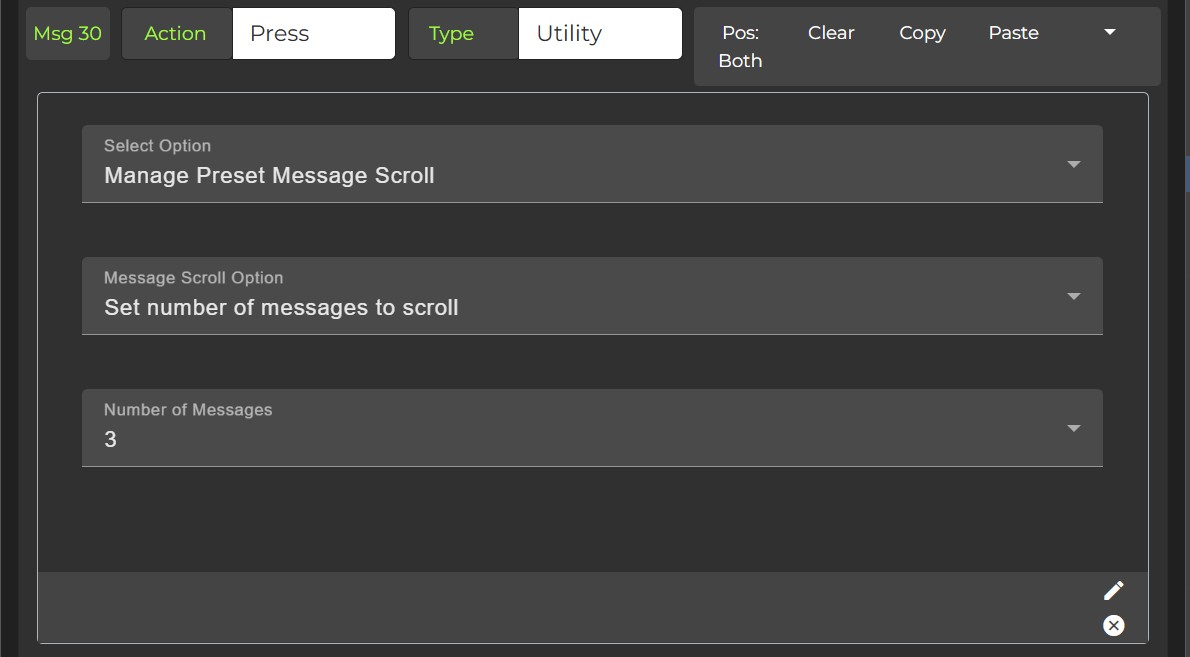

I don’t think it’s enough to play with positions 1, 2, both, or shift… Because the F and G presets work in scroll mode, which makes things much more complex.
If anyone can help me…
Here is the link for the video to show you exactly what’s happen.

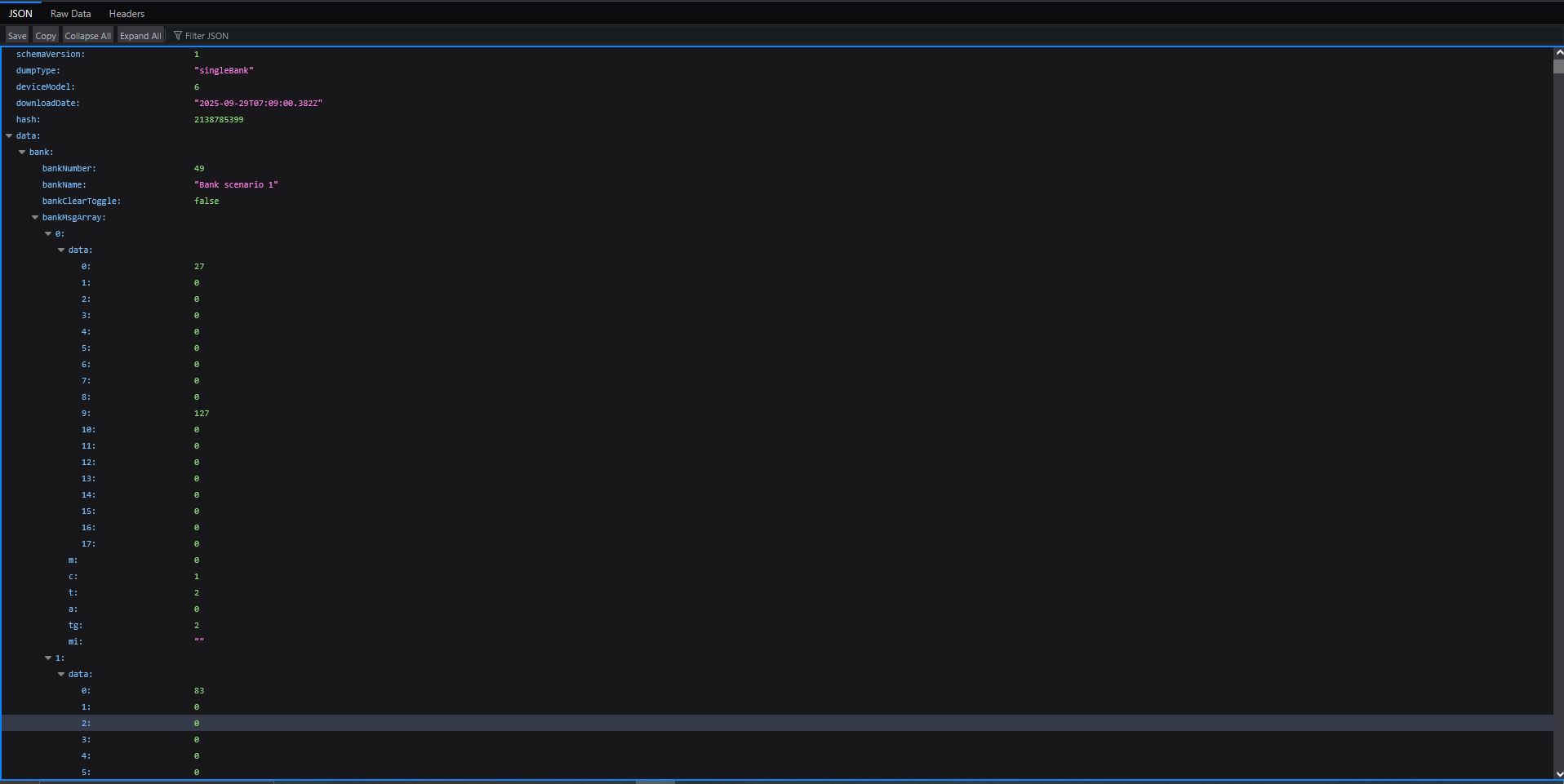

and the 2 concerned banks:
Morningstar_MC8PRO_Bank_Backup_Bank scenario 1_20250924_120056.json (89.6 KB)
Morningstar_MC8PRO_Bank_Backup_Bank scenario 2_20250924_120110.json (89.5 KB)
