Preset scroll controlling multiple pedals unintentionally

[JackMarkey]

Fairly new to Midi and I’m sure I’m overlooking something simple.

Set up a page on the Mc6 to scroll through presets of three pedals:
Midi channel one - Strymon Volante
Midi channel two - Meris Mercury7
Midi channel three - Meris Polymoon

I followed the steps from The Morningstar “Preset Scrolling” YouTube video and it worked perfectly.
I then applied the same steps for the Mercury7 and Polymoon while applying the applicable midi channels. I also added Scroll Counters to each pedal… with their number of onboard presets as the max number for each Scroll Counter.

When I cycle up or down on the Volante’s Morningstar preset scroll, the numbers on the three pedals presets move in unison.
The Mercury7 scroll changes it’s presets, but the number is not showing on the Morningstar.
The Polymoon is only working with long scroll as opposed to a single press of the button.

I’ve gone over the video a few times and can’t figure out what I’m doing wrong.
Any help would be great.
Kind Regards, Jack.

[quadstar]

Adjust the midi channel each device listens on to be unique.

Then use that midi channel when sending from the midi controller to one device.

[moley6knipe]

Hi! It would help if you can post screenshots of the presets and your scroll counters. It’ll be fixable…

[JackMarkey]

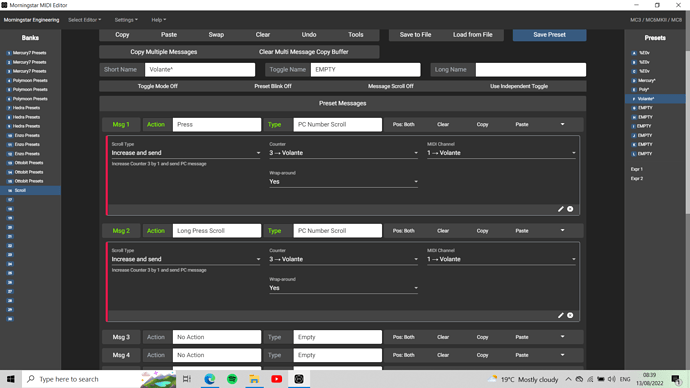

Hello. Of course! That would help.

[JackMarkey]

[JackMarkey]

[JackMarkey]

[JackMarkey]

[JackMarkey]

[JackMarkey]

[JackMarkey]

[JackMarkey]

[moley6knipe]

Hi! Have only had time for a quick look but I think your problem is that you’re using the same scroll counter placeholder across many preset names?

In your screenshots, I see placeholder %E0 for presets A thru C. That means they’ll all show the value from counter 0, offset by +1 (so, midi pc 0 shows as 1). There’s a guide to placeholders here: Message Type List

[JackMarkey]

Thanks for getting back to me!
That makes sense, I’ll sort it shortly.

[JackMarkey]

That worked a charm! Thanks for the help.
