you will note that this preset was in “toggle mode” to deactivate / activate the OD-200.
If you are wondering why I needed to activate it with the “A” preset initially intended for the clean, the reason is very simple:
If I press this preset while another preset is selected I switch to clean (OD-200 off); ALWAYS.
But just turning it on and only turning it on automatically selects the last distortion used.
It was practical to go from clean (od-200 off) to the last distortion used with a single switch. So I could have:
clean-OD1-clean-OD-1
Or
clean - Lead - clean - lead etc…
here is my preset A in my bank with the following selection:
Clean-OD1-OD2-Clean-OD1-OD2-Clean-OD1-OD2-Clean
Ok, you need to understand that you are trying to apply conditional logic to a system that’s not well suited for this. If you just paste a preset to a bank that has multiple presets with interdependent toggles it just won’t work. Everything will go out of sync and strange stuff happens.
Lets recap. The OD presets I programmed are working as you wish?
It’s just the Clean preset that isn’t working for you?
If so, please copy the preset A I’ve programmed. Then we work on the toggles to get the MC to do what it should. And only then we can tackle the OD side of things. This is important because otherwise we won’t get anywhere.
I’ll have some time tomorrow. I’m going to set up a new preset A for you
If I understand you correctly you want to have the preset A to toggle the OD off and on again?
If so, note that there is no way to give you a visual feedback to tell which OD preset is active
OK. In any case, the last active distortion should be (if my logic is correct) still displayed by the background of this one because preset A only switches the OD-200 to On-off mode.
And in the worst case, if it doesn’t work as desired, we program the preset A so that its ONLY function is to turn off the OD-200. At that moment, too bad for the ON-OFF.
Hi,
I believe I have it working. I couldn’t make the Clean preset work like you wanted.
But I might have found a way to keep the functionality. I color coded the presets. The middle strip will change to the color that fits the active preset if you engage the Clean preset.
Please copy the WHOLE bank and test it. I reworked every preset.
The toggles are working and sending out the midi messages I’d expect. If the OD doesn’t behave like it should, I got something wrong about how the OD is working. Then we’ll have to work out how the OD responds to midi.
If you don’t like the color coding idea at all we could change that. But I couldn’t think of a better way to implement the information which preset is active when you press the Clean switch. You might have to live without this function then.
Hello, I tested your bank.
Well, I admit that this rainbow of colors stung my eyes but I made some changes, and in the end I realized that all these colors were useless.
I must have left your bank as you programmed it but I copied it and made changes…it was there, little by little, that I realized that I could make things simpler.
In all that, it works for the moment on everything you have programmed in your bank…
I still have to add my preset F (reverb) tomorrow, hoping that it won’t cause a mess.
I’ll let you watch the result:
I will still have one or two questions tomorrow evening because I admit that if you hadn’t been there I would never have gotten through it. No way.
I don’t know if you work for morningstar or if you’re just an avid user, but in any case, on this one you are clearly my savior.
I don’t think you have any idea how saving your behavior is. In a world where individualism reigns, there remain people who are dedicated, concerned, and loving a well done job…and this is becoming so rare that it must be emphasized.
1000 Thanks.
I live in France and work in Germany. Near me there are Luxembourg and Belgium. 4 Countries then. I said to my wife: “we must say things as they are, the Americans are a people who still know what “mutual aid” means
Hey Wolf and Miguelito great job thanks a lot, you helped me achieve what i wanted from this controller.
In this uptated version i let you a variation that introduces a third PC number that cam be activated with a double tap, unfortunatelly the double tap only works on active preset and an update of the software would be required to make this work seemesly.
@GuitarWolf@james@BigSky
With my setup, I am fully satisfied, except for one thing. I can, with my presets A,B,C,D,E activate the reverb. Besides, basically, my reverb (source audio ventris) is activated. I just manage the volume of this one with my expression pedal.
The problem is that I have the F switch configured for the ventris. And depending on the fact that I possibly turned off or turned on the reverb on for example preset C, well when I turn on the ventris via switch F the strip does not necessarily indicate whether the reverb is on or off. What I would like is for the strip to ALWAYS tell me that the ventris is on. Is that possible ?
It’s true that I no longer absolutely need an F switch for the ventris if in any case it is on on presets A to E and managed by the EXP pedal but I like things to work like that I need it.
At each preset (clean, od 1,2,3,4) the “ventris” reverb is “ON” by default with its volume at 0 by default too as well. I have decided to manage the reverb volume with the expression pedal.
It suits me that way.
So I chose to assign the MC-6’s “F” button to the following function:
switching from engine A of the ventris to engines A + B.
But the problem remains almost the same. I would like my Preset F (the one that controls the reverb engines) to remember the status of the reverb. Without strip = engine A **
** With strip = engine A+B
I did what @GuitarWolf programmed for me on the other presets (thanks again), and trying a little bit.
The problem that persists is that when I activate any preset, only engine A is selected and lit (this is what I absolutely want because i wante engine B only for some ambiances) but the strip of preset “F” remains lit…
The result is that if I want to switch to dual reverb with the F button I have to click on F twice instead of once.
The first time to turn off the strip (F) which ensures the correct status between the preset and the reverb
A second time to activate dual Reverb
what I would like is that by pressing A,B,C,D or E the F strip is turned off for correct synchronization.
How to best configure this?
Here are my settings for the dual reverb (preset F) according to the video: preset_F_data.json (3.1 KB)

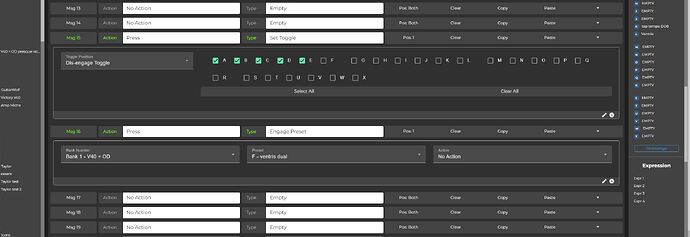

In that case you’ll have to programm a ‘set toggle’ with ‘preset F + disengage’ to each of the presets A to E in ‘pos 1’
That way each time you press A, B, C, D or E for the first time preset F would be toggled to position 1(strip off)
at first it didn’t work, then I reversed the CC messages.
By changing the CC message for position 1 to CC#3 (engine A+B dual mode) on the first press and CC#0 to position 2 (engine A) since when I change channel I am already in position 2
I only have one small optional problem left to resolve.
@GuitarWolf
how would you have configured preset F? quite normally or in shift state mode?
