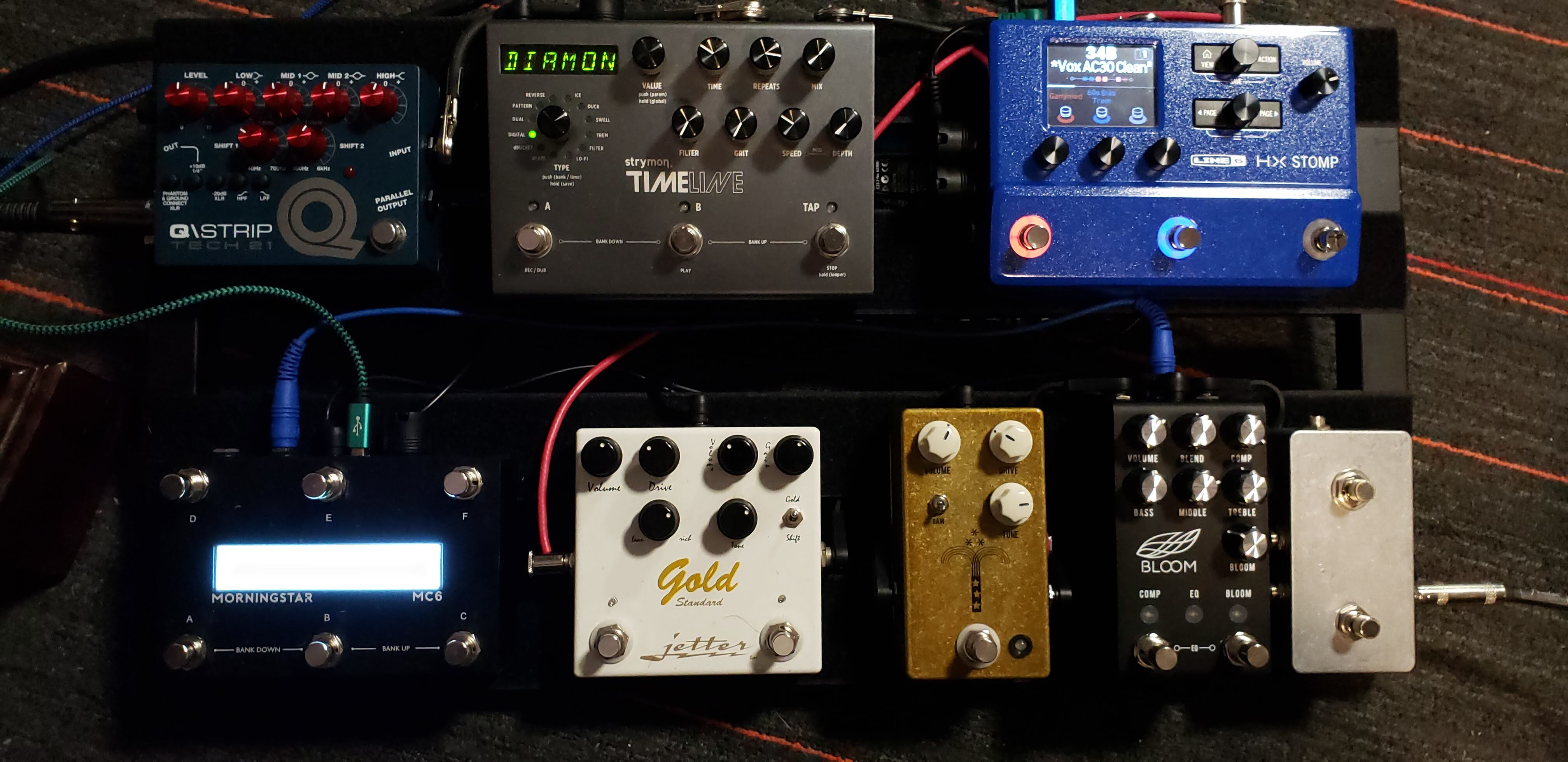

This is my multi-function (Electric, Acoustic, Bass) pedalboard. The MC6 controls the Timeline, HX Stomp, and the compressor presets on the Bloom. The unmarked box on the right is a homebuilt buffer, the switches on it are not in use. The HX Stomp is functioning as the amp for Electric and Bass. I typically bypass it for acoustic.
The Q-Strip is at the end of the signal chain and splits between balanced and unbalanced outs. I use the EQ on the Q-Strip to dial in the acoustic sounds depending on what I’m going into.
Sorry you can’t see the screen on the MC6 - I wish I could dim the backlight on it a bit.
