MC6Pro USB Host Port Isn't Functioning?

Morningstar Gear MC Pro Series MIDI Controller
1

How have you successfully connected your mc6 pro to other devices through the usb c host port? Nothing will turn on when connected to its host port and I’ve tried a few different hubs and dongles. I’m trying to figure out if I’m not doing something correct or if I may have a defective unit.

Thanks for any help!

2

Can you share pictures of the hubs you are using? It has to only have USB ports. It it has HDMI or other peripherals then it won’t work.

Have you tried connecting directly via cable to your other devices?

We send data to the USB host port to trigger routines during assembly and our tests so any boards with faulty USB host ports would have been filtered out. Not saying there won’t be any issues but let’s troubleshoot further

3

image1512×2016 959 KB

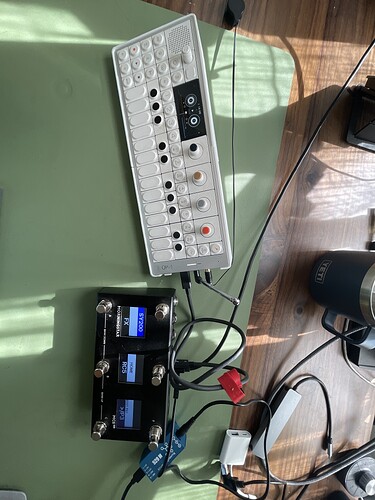

Here’s a current attempt to go from computer to mc6p to op1f via usb c cables. No indication that the op1 is connected to anything and my computer doesn’t show it as an available device.

Thank you for working with me.

4

Just to clarify, connecting any USB MIDI device to the USB Host port does not allow it to be detected to a computer that the MC6 Pro is connected to. The USB Host port simply allows you to control a USB MIDI device with the MC6 PRO.

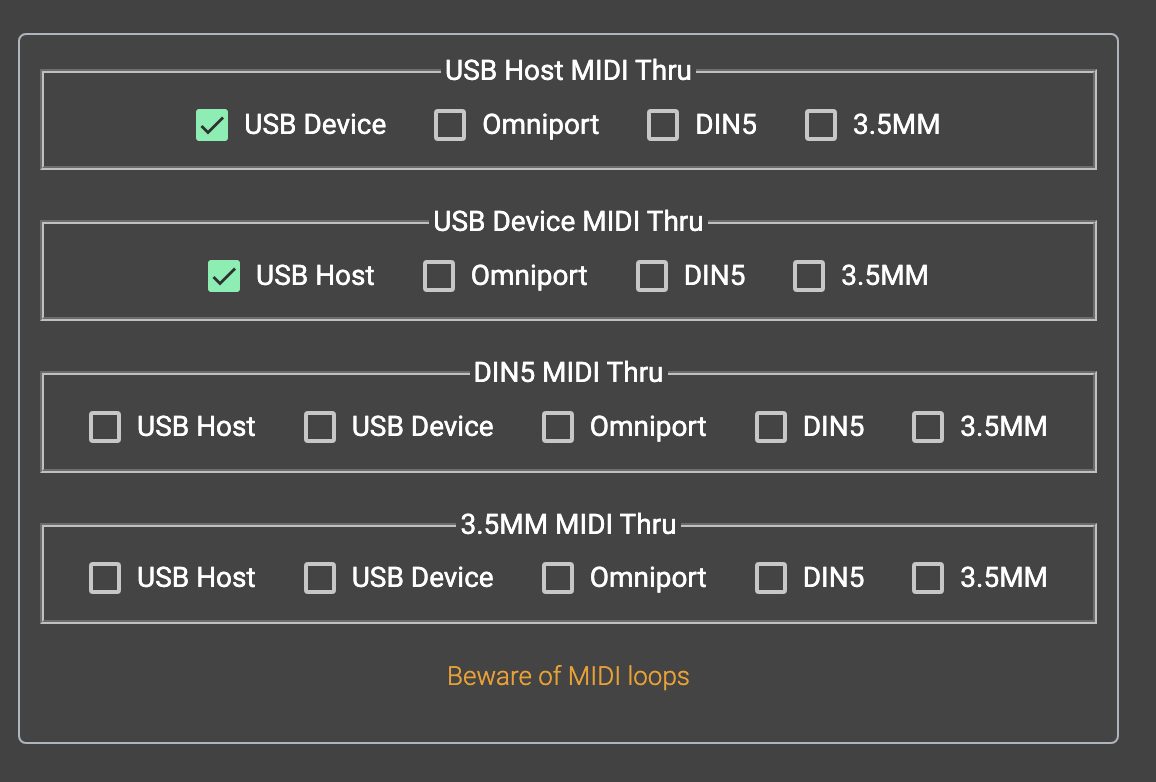

If you want to pass MIDI messages from the OP-1 through to the computer via the MC6 PRO MIDI Host port, you’ll need to set the MIDI Thru settings as such:

image1156×782 40.9 KB

This will pass incoming MIDI messages from the USB Host port to the USB device port and vice versa, so MIDI messages sent from the OP-1 will be passed thru to your computer.

5

Copy! Hmm, I may be overestimating what it can do, but that’s good to know!

Will the MC6PRO supply any power to the devices connected to the host jack? Hooking up an external keyboard to host isn’t getting me anything.

I’ve checked “USB Device” and “USB Host” for the Thru’s and I’m not getting any response from the MC6 when playing in some notes on the op1.

Current puzzle solving aside, I’ve been really happy with my unit so far. Thanks again!

6

Yes, the HOST port can supply power up to USB limits (500mA) but it also depends on the amount of current the MC6 PRO is getting . If you are only supplying it with 250mA in the 9v jack, or powering the MC6 PRO via USB, for example, then there won’t be enough power in the HOST port.

Just to clarify, is there an app you are running on the computer that you want to receive MIDI information from the OP-1? What app is that?

7

Gotcha. I had the mc6pro connected to usb c and powered off a Strymon Ojai (9v 500ma). I can try hooking it up to a higher current port. Is there a current max for the unit that I should be aware of? Is there a powered usb hub that I should try to work into my setup?

I’m trying to start basic and connect devices with MidiFire on my Mac.

8

I’m not familiar with the power requirements for the OP-1. But for 500mA, about 250mA is consumed by the MC6 PRO already.

The OP-1 needs to be set to MIDI controller mode in order for it to send MIDI messages - just want to check if you have done that.

You can try using the midi monitor (https://www.midimonitor.com/) to check whether the messages are passing through
