How to show that one Snapshot is Active while the others are Inactive [ANSWER GIVEN]

MIDI Control Line 6
1

I have switches A, B, D and E dedicated to each of the 4 Snapshots. BUT, I only want to see which one is active, how do I do this?

ANSWER FROM MORNINGSTAR:

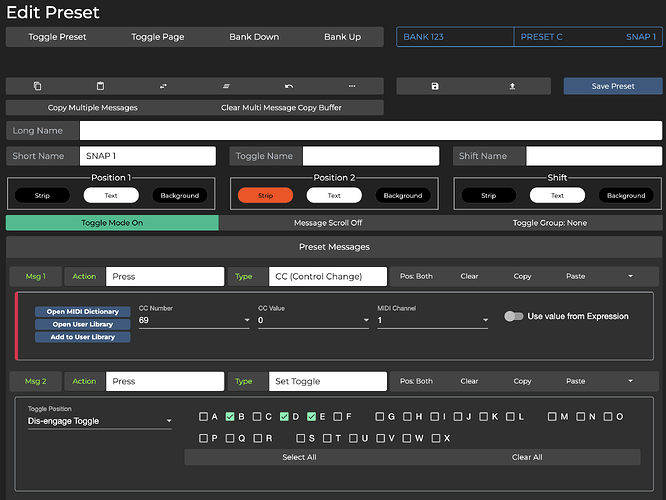

Yes, you can do that. You just need to add a Set Toggle message type to switches A to E. Where pressing one switch will disengage the toggle states for the other switches. I’ve created the preset ​to show you:

Snapshop Preset
Snapshop Preset2516×1888 236 KB

2 Likes
2

Thank you for putting this out there. I have been trying to figure this out and it was driving me nuts. How do you set it up if I have a snapshot active when I enter the bank. Currently when switching to the bank, it doesnt show any of the snapshots as active.
