It’s only taken me a month to finally get around to testing this out. From the couple of hours I’ve spent, I haven’t run into any issues. Setting routing on the ML10X, using set loops for preset calls, and toggle loops for adding an extra drive in.
Thanks James, made my life a little easier.
Before this firmware update this was the only feature from the ML10x that was missing for me.
I just tried 2024-06-28_ML10X_REV_B_Firmware_v_1_1_3_BETA.hex and it works beautifully for my use case!!!
This is so amazing! Thank you!
Thank you James and team!
Does this beta contain the output mirroring in simple mode when the ring is empty?
@james - toggling a loop is not working for me. The engage/bypass loop cc’s is working but not the toggling. In this specific case its D Tip.
Seems to be working for me. Can you use the latest Beta firmware here?
@james admittedly I did not see the newer firmware. I will update and give it a go. Sorry!
@james - i figured out the reason. It’s since I have midi plugged in and the usb host connection. If I remove 5 pin din then it works and vice versa. Any settings I should change to help this? Thx
This is because your controller is sending MIDI out to both the USB Host and 5 pin. So the ML10X is receiving the MIDI message twice. Hence the toggle feature doesnt look like it is working because it is toggling and then toggling back. In the MC MIDI channel settings under the controller settings, you can perhaps turn off the USB HOST MIDI port for the ML10X MIDI channel.
I’m seeing a couple issues with the beta firmware 1.2.0 and beta editor (RevB) on Advanced Mode presets.
High-level overview:
I’m passing my signal through my drives (input tip through the drives in mono), then splitting for stereo wet effects and amps (D & E).
The two issues:
1) When backing up, factory resetting and restoring/reloading the backup, my preset on/off settings for each ring/tip are not loading. All rings/tips are bypassed after reloading the backup.
2) The display on the ML10x isn’t showing the right short names for my signal chain. Here’s an example:
My signal chain shown through the Editor:

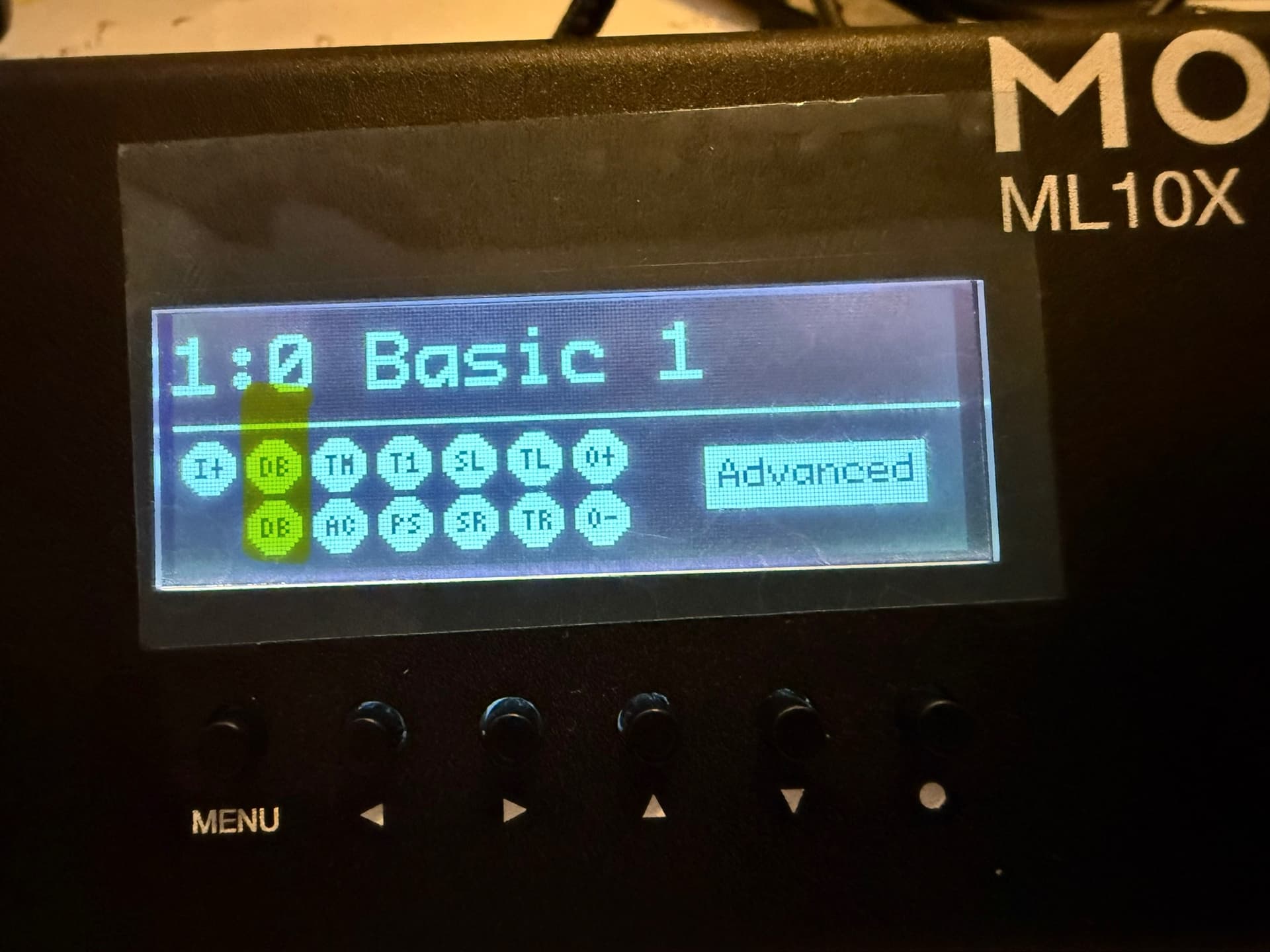

My signal chain shown on the ML10x device
Two things:
A) Not showing all short names - Notice DB is shown twice (even though DB is the short name for only the “Double B A-tip”) and NK (short name for NotAKlon A-Ring) is missing.
B) Not showing in the correct order of my signal chain…and not showing engaged vs. bypassed loops. Is this a limitation of the how the ML10x shows the on-screen advanced mode?
when is this gonna go public? im working on a video using these features
We’ll try to release it in 2 weeks. Left with fixing the last connected trails bug
I’m having a similar bug as you described. One of my units is effectively bricked until it is resolved.
Any update on public release for this? Looking forward to being able to discard about 30 of my presets
I know @james is keeping it in beta but I’ve been using that firmware for a year and haven’t seen anything weird. It’s pretty stable.
(knock on wood) same here. It’s been working well for me.
Question:
I see that the cut output / restore output are using sysex NOT CCs.
For those of us not using Morningstar controllers can we get any documentation of the sysex commands so that we can use these features?
I would love to get the real release
