5 Cable Method for stereo use

Morningstar Gear ML10X
1

Guitar>Octave Shifter> Noisegate> ML10x Input

Loop 1 Tip: Walrus Melee

Loop2: Overdrives

Loop 3: HX Stomp (front of amplifier)
Send: To HX Stomp input
Return: From L send of Stomp tip return

Loop 4: 4CM (Amp Loop)
Send: To Amp input
Return: From Amp FX Send

Loop 5/6: HX Stomp (fx loop)
Send (tip/ring): To Stomp L return
Return: From Stomp L and Right output (tip/ring)

Loop 7: Catlinbread Soft Focus

Loop 8: Nothing

Loop 9/10: Strymon Cloudburst in Stereo

Output: To amp FX return

Now I want to split the output to 2 amp returns or better known as “poor mans stereo rig” Here is a video that explains it. How can I set this up in the editor?

2

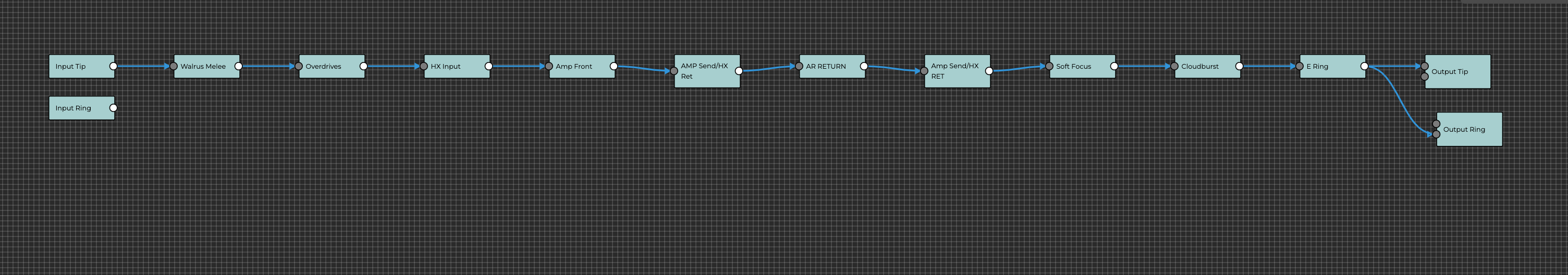

Assuming you’re currently using the basic mode, you’ll need to move to the advanced mode to be able to keep the effects in the same order while making use of loop 8 to be a copy of loop 4. It’d be easier if you had a pair for a stereo L/R like loop 5/6 but not a hassle. (Thankfully the beta firmware allows for loop bypassing in advanced mode now). You’ll just have to manually route the loop connections in the advanced editor but will accomplish what you want.

3

while in advanced mode would I just keep the whole simple chain but at the end to, Output tip?Output ring?

from the last effect

4

Sorry I haven’t replied sooner, did you get it all figured out? Happy to assist further if you still needed help.

5

I did not. I still need to try the beta i have been seeing on the forum
